Sustainable by Design: Leveraging BIM for LEED & Energy Optimization in the US AEC Market

An Architectural 3D Rendering of Sustainable Design

In a world where climate change and resource scarcity has led to regulations being evolved, sustainable design has grown from being an aspirational goal to a necessary standard in the United States construction industry. Today, all AEC (Architecture, Engineering, and Construction) businesses are under increasing pressure to design environmentally responsible buildings. Moreover, these buildings must also meet rigorous certification benchmarks – particularly Leadership in Energy and Environmental Design (LEED). For this, Building Information Modeling (BIM) has emerged as a powerful enabler – it offers a digital and data-rich environment that allows us to design, simulate, and validate sustainable building performances, even before construction begins.

This article explores this partnership of BIM and LEED compliance with energy optimization in US projects – where the focus is on strategies like early-stage energy analysis, solar shading optimization, and sustainable material selection. If AEC firms want to stay competitive and design climate-resilient structures, integrating BIM into sustainable workflows is not just beneficial – it is essential.

BIM as the Engine for Energy Analysis and Optimization

The traditional design processes are transformed by BIM – intelligent 3D modeling with embedded data about materials, energy use, lifecycle costs, and more. This means that you can take performance-based design decisions, and complete iterative testing early on in the project lifecycle – where changes are cheaper and more impactful.

For projects that are sustainability-focused since the beginning, BIM creates a seamless workflow across different disciplines – from architectural modeling to mechanical systems design – which enables a holistic understanding of how design choices can affect energy performance, water efficiency, indoor environment quality, and material usage. To create an intelligent, data-rich model that serves as a foundation for energy modeling and Building Energy Simulation (BEM), you must consider the following:

1. Early-stage insight: BIM allows quick and iterative energy analysis from the very beginning.
   • Test massing & orientation: it helps evaluate building shape(s) against climate data.
   • Parametric studies: ‘what if’ scenarios can be run on model statistics to check energy use, like window-to-wall ratios, insulation levels, glazing types, and HVAC system.
   • Baseline & target setting: you can compare designed ideas against baseline models.
2. Automated data flow: you can use BIM to also avoid the errors of manual data entries – ensuring consistency and additionally saving significant time.
3. Whole-building systems integration: BIM can help in modeling the complex interactions between the building envelop, HVAC systems, lighting, and renewable energy sources.
4. Daylight and artificial lighting analysis: this identifies the window placements, shading designs, and also allows for creating automated lighting control strategies to optimize energy use.

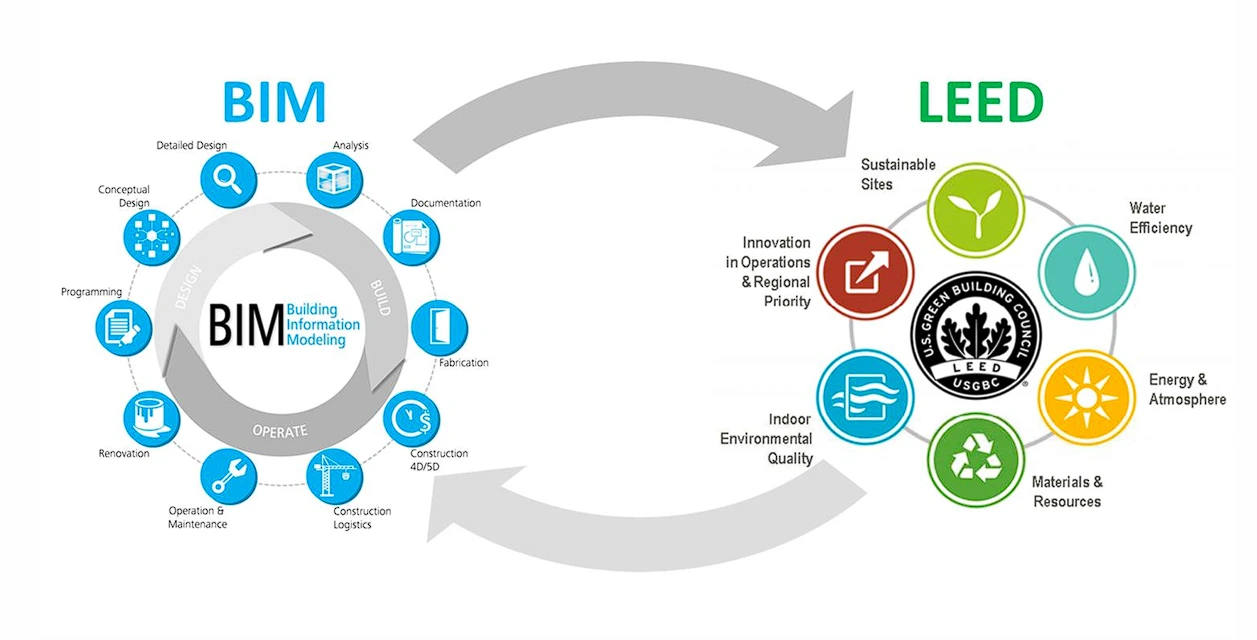

BIM: The Backbone for Efficient LEED Certification

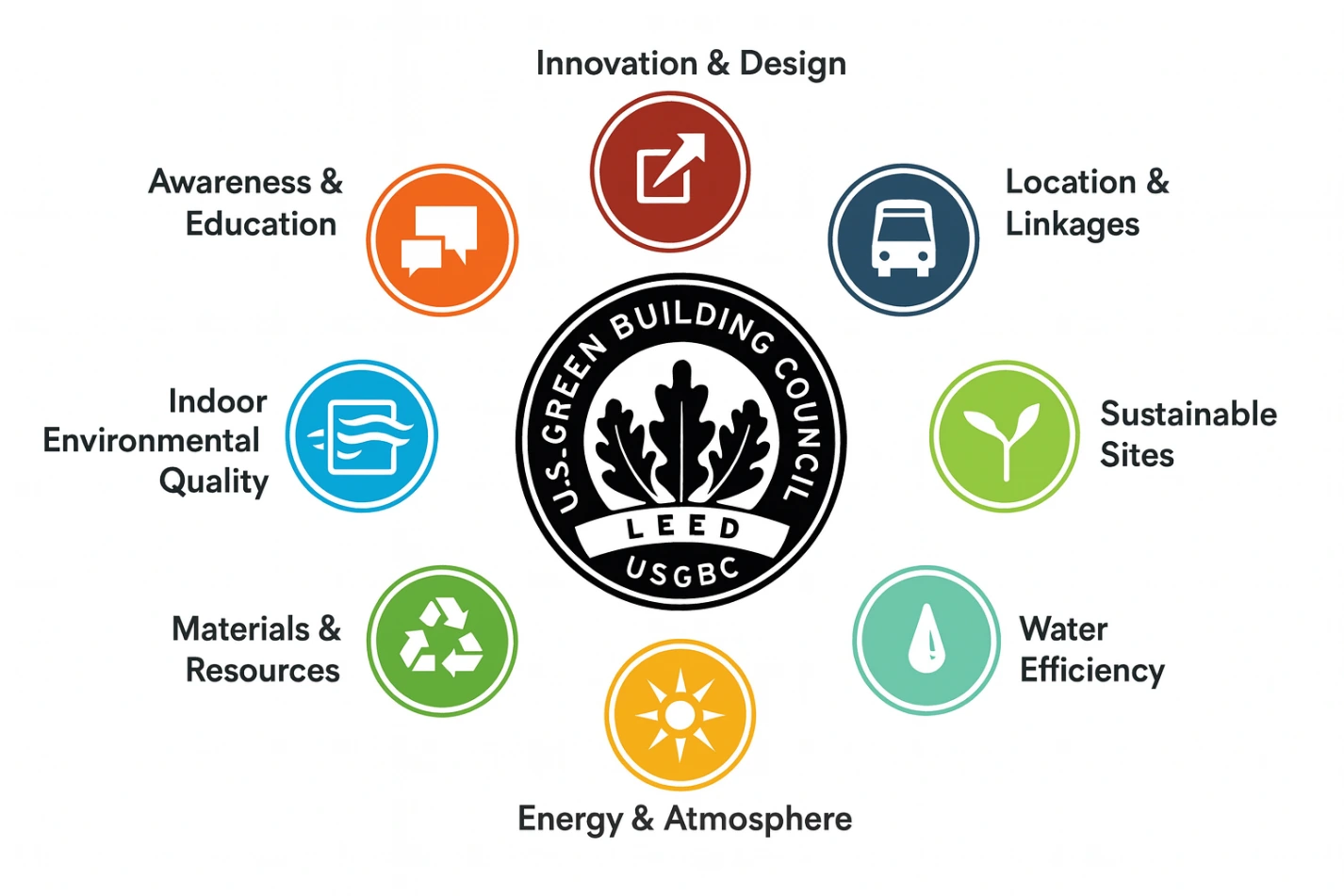

LEED is the most widely used green building certification in the US – and it was developed by the United States Green Building Council (USGBC). LEED consists of a range of performance criteria across energy, water, materials, and site impact. The process of achieving LEED certification traditionally involves extensive project documentation and post-design analysis – BIM can automate and streamline several aspects of this process easily.

Key BIM Capabilities That Support LEED

1. Single source of truth: all the geometry (model), material data, energy analysis results, and other specifications reside within the BIM model – or are linked to it.
2. Automated documentation: you can use the BIM model for automated generation of:
   • Floor area calculations – for density, open space, etc.
   • Site plans – that highlight vegetated areas, open space, rainwater management features
   • Schedules – to summarize material properties
   • Views that illustrate daylight access, and views to the outdoors
3. Credit tracking & validation: dedicated BIM-based LEED management tools will provide real-time dashboards – showing the credit achievement status and highlighting the missing data.
4. Enhanced coordination & clash detection: BIM helps prevent costly errors and rework, ensuring that the sustainable design intent is actually built correctly, which is necessary to achieve the predicted performance and certification.
5. Integrated water management: BIM can also model plumbing and irrigation systems to aid water-use reduction targets – this supports the LEED water efficiency credit attainment.
6. Performance simulation: designs can simulate different energy loads, daylighting, and HVAC performance – which directly impacts the LEEP energy, atmosphere, and the Indoor Environmental Quality credits.
7. Site analysis: the tools within BIM platforms can be used to access topography, solar orientation, and wind patterns – which supports sustainable site planning and urban integration.

When you embed sustainability targets directly into the design process, BIM can help AEC firms to track the LEED points in real-time – to ensure alignment with project goals and certification timelines.

Energy Analysis and Simulation

At the heart of sustainable design lies energy modeling – enabled by BIM through advanced simulation tools integrated directly into the design workflow. Usually, this complex analysis is outsourced late in the process – BIM enables an early-stage energy modeling that uses design geometry, building orientation, and material properties.

Energy Modeling Capabilities Include:

• Energy use estimation of the whole building
• HVAC load calculation and system optimization
• Potential modeling for renewable energy – for example, solar panels
• Simulations on thermal comfort to understand occupant health

AEC professionals can identify the most sustainable solutions by evaluating multiple design options based on energy use intensity (EUI), carbon footprint, and lifecycle costs – aligning them with LEED energy & atmosphere goals.

For example, Autodesk Revit with Insight helps users compare building performance across different scenarios – like glazing ratios, wall assemblies, and insulation types. This helps reduce operational costs and also optimizes energy credits under LEED v4 or v5 frameworks.

Mastering Solar Shading Through BIM Intelligence

Solar heat gain and daylight play important roles in reducing HVAC loads and improving comfort in the indoors of a project. BIM enables designers to simulate solar movements across the site – which in turn helps optimize building orientation, façade design, and other shading strategies.

Key Benefits of Solar Analysis via BIM

• Solar path simulations: you can use this to determine ideal window placements, shading device styles or placements, and building angles.
• Daylight analysis: with this, you can ensure that natural light reaches maximum of the interior spaces, reducing the demand for artificial lighting.
• Glare & comfort studies: this can help guide the use of smart glazing and internal shading – to prevent overheating or occupant discomfort.
• Parametric shading design: you can rapidly generate and test many shading devices – like overhangs, fins, louvres, brise soleil, and so on.
• Integration with façade system: you will be able to design the façade and the building envelop as an integral element of the project structure.
• Performance quantification: this comparative data then provides a concrete direction for design decisions and LEED documentation.

BIM tools like Ladybug and Rhino (Grasshopper) plugins for solar studying, or Sefaira for Revit/SketchUp daylighting analysis provides real-time solar-based feedback on design iterations. These strategies contribute to LEED points for Daylight and Views – and also promote occupant-friendly, biophilic environments.

Sustainable Material Selection through BIM

A vital component of sustainable construction is material selection. BIM helps designers to evaluate materials based on environmental impact, sourcing, lifecycle, and toxicity. With the help of BIM databases and plugins, AEC professionals can choose materials that align with LEED credits for Material & Resources.

Features That Support Sustainable Material Use

• Material databases: like EC3, Green building studio – these databases embedded in BIM platforms help to check environmental product declarations (EPDs), recycled content, or regional availability.
• Quantitative take-offs: this will help assess embodied carbon and waste.
• Product tracking: this gives transparency across different specifications and procurement.

For instance, a Revit model with embedded sustainability data can be used to generate a comprehensive bill of materials (BOM) – to review against LEED compliant product libraries. This facilitates in LEED documentation, meanwhile also encouraging supply chain transparency and carbon-conscious decision making.

Collaborative Sustainability with BIM

The key to delivering sustainable buildings is collaborative creation. BIM fosters an interdisciplinary coordination between architects, MEP engineers, sustainability consultants, and even contractors – making sure that sustainability goals are met without any conflicts or delays.

• Cloud-based platforms like BIM 360 or Autodesk Construction Cloud (ACC) allow real-time collaboration – through sharing of sustainability metrics, schedules, and clash detection.
• Integrated models will prevent the duplication of effort and also ensure that sustainability targets are baked into each system – façade, HVAC, lighting, and structure.

Such an integrative, collaborative approach can reduce design silos and accelerate the delivery of the green building.

Real-World Example: BIM in a LEED Platinum Project

One example of BIM’s impact on sustainable design is the greenest commercial building in the US – the Bullitt Center in Seattle. The design team for this project used BIM to model the energy use, daylight penetration, and rainwater harvesting systems – which contributed to the project achieving net-zero energy and LEED Platinum status. The real-time simulation across disciplines can enable a precise control over the energy and material use – which demonstrates BIM’s transformative potential in high-performance building delivery.

To Finish Up

Designing buildings sustainably is no longer a luxury – it is a necessity for the AEC industry in the United States. Environmental regulations have started to tighten, and clients are demanding greener solutions – here, BIM offers a data-drive, collaborative approach to designing buildings that meet LEED certification and energy performance goals. BIM will empower teams to:

• Design smarter
• Optimize holistically
• Reduce the risk and minimize errors
• Streamline certification

BIM integrates energy modeling, solar studies, material tracking, and documentation into a centralized platform – which empowers AEC firms to deliver value to clients as well as to the environment. It is true that the transition requires investment – software, training, and evolving workflows – but the return is undeniable. BIM is the foundation that will support the future – sustainable construction rooted in intelligent workflows.
