Scan-to-BIM is Revolutionizing US Historic Renovation Projects

Historic buildings are the living testaments of cultural, social, and technological evolutions of a society – more than just being architectural artefacts. In the United States, aging structures are being offered a new and sustainable life via adaptive reuse and heritage preservation – a form of urban development that is quick momentum recently. However, the challenges that may occur while renovating or restoring older structures – stadiums, train stations, government buildings, as well as civic monuments – are large and significant.

Many of these older structures contain complex geometries – often in worn conditions – which is difficult to capture accurately via traditional documentation methods. This is where Scan-to-BIM (Building Information Modeling) can come into play – a technology that brings precision, efficiency, and better insight into the renovation of historic projects. Scan-to-BIM converts high-resolution point-cloud data into detailed 3D model(s)– making it easier for architects, engineers, and preservationists to approach restoration works.

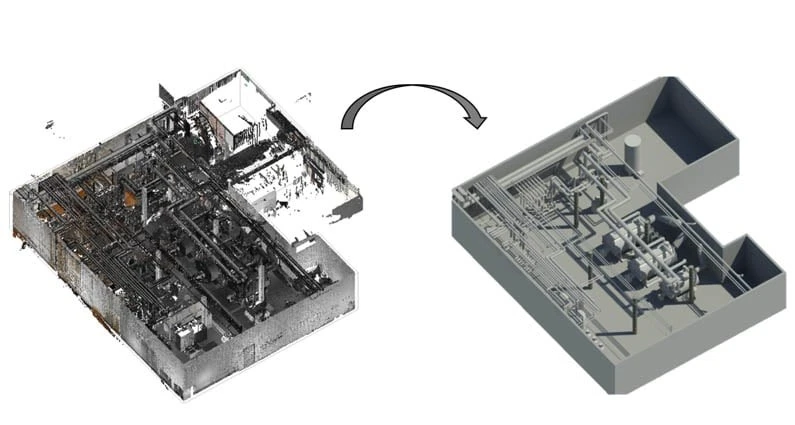

The Scan-to-BIM Process: Digitally Capturing Reality

At the core of its technology, Scan-to-BIM involves two critical phases, as detailed below.

3D Laser Scanning: The Capture of Reality

Using terrestrial laser scanners (for physical surfaces), the existing conditions of a structure can be captured with incredible speed and accuracy. These scanners emit millions of laser points every second, which measure the distances to each surface they encounter. The final result of this scanning is a dense point cloud – a large collection of precise 3D coordinates that represent the exact geometry of the building, down to the finest moulding or a crack in the stone. This is a digital replica of the structure – including all deviations, settlements, and undocumented changes combined over decades, even centuries.

Building Information Modeling (BIM)

This rich, dense point cloud is now imported into specialized BIM software – like Revit, ArchiCAD, or Bentley Systems. Using this precise digital reference, skilled modelers construct intelligent, parametric 3D models of the mapped structure. Being more advanced than CAD drawings, BIM models embed crucial information within this virtual building’s elements – there are material specifications, historical data, structural properties, as well as maintenance requirements. This BIM model will now become the single source of truth for the entire renovation or restoration process of the project.

Why is Scan-to-BIM a Game-Changer for Historic Renovation?

The combination of laser scanning and BIM addresses and solves the fundamental pain points of historic renovation:

Unparalleled Accuracy & As-Built Documentation

More often than not, historic buildings have ornate façades, some curved surfaces, and non-standard dimensions that have resulted from old age, settling, or other modifications. Measurements taken by hand may be unreliable, and outdated blueprints may be completely missing. Scan-to-BIM delivers millimeter-level precision for measurements, ensuring that the digital model of the building reflects the actual condition of the structure.

An example can be given of the Los Angeles Memorial Coliseum – one of the oldest stadiums of the Unites States – where engineers used Scan-to-BIM to model the intricate details of the stadium’s steel and concrete elements. This allowed the team to design structural updates without compromising on the building’s historical integrity.

Traditional documentation of heritage buildings may take weeks, sometimes even months because of intricacy, and still miss out on many critical details. 3D laser scanning can complete this task in just a few days, while capturing all critical details of façade ornamentation, internal voids, as well as mechanical chases.

This technology is particularly helpful in civic buildings – like courthouses or libraries – which would remain partially operational even during renovations. Fast scanning reduces downtime, and also leads to lesser disruption for public services.

Informed Decision Making, Designing & Planning

By integrating the point cloud data into the BIM software, teams working on the project can analyse spatial relationships more effectively – simulating structural behavior and testing retrofit strategies. Architects and engineers can evaluate the different impacts of proposed changes on the existing structure, as well as compliance with building codes.

Take the example of the adaptive reuse of the historic Michigan Central Station in Detroit – where the Scan-to-BIM process helped in evaluating whether the original materials like marble and terracotta could be retained or needed to be replaced. Without digital modeling, such an analysis would be nearly impossible – or just prohibitively expensive.

Improved Collaboration and Project Transparency

Renovation projects are bound to include multiple stakeholders – preservation authorities, architects, engineers, contractors, and clients. A centralized BIM model means that everyone is working from the same updated information – effectively reducing errors and miscommunication.

Cloud-based BIM platforms will allow real-time access to the model and markup capabilities. Teams that restore aged civic structures use Scan-to-BIM to coordinate across disciplines – ensuring that seismic retrofitting and architectural preservation occur seamlessly.

Risk Mitigation and Safety

Older buildings often times hide structural surprises – may it be hidden voids, unstable materials, or undocumented retrofits. Scan-to-BIM is a non-invasive method of seeing behind the walls, ceilings, and floors – especially when combined with technologies like ground-penetrating radar or thermal imaging.

Once you know what lies beneath the surface, it is easier to avoid costly delays and ensure worker safety – particularly in large-scale civic renovations such as the Boston City Hall, where the internal infrastructure has been altered multiple times since its original construction in the 1960s.

Preservation Through Precision

Precision is paramount for sensitive preservation – by understanding the exact condition and geometry of the structures. Scan-to-BIM allows conservators and architects to analyse delicate features – such as ornate plasterwork, structural timber frames, and so on – without extensive physical probing. This helps them test repair strategies, design custom replacement parts with perfect fits, and minimize other invasive interventions.

Clash Detection and Conflict Resolution

The integration of modern systems – HVAC, electrical, MEP, and fire suppression – within historic buildings is a great challenge. The intelligent BIM model, created with Scan-to-BIM’s point-cloud, allows designers to route new systems within the confines of the existing structure virtually itself – while identifying clashes of the new system with structural elements, historic features, or any other existing system(s) before the construction or renovation actually begins. This helps to prevent the destructive on-site modifications, as well as costly rework.

Streamlined Regulatory Approvals

When the documentation is precise, demonstrating compliance with strict historic preservation standards is easier – such as the Secretary of the Interior’s Standards. Scan-to-BIM allows designers to make evidence models of the correct existing conditions and the proposed interventions – making the path smoother through landmark commission reviews.

Case Studies: Stadiums and Civic Buildings Transformation Stories

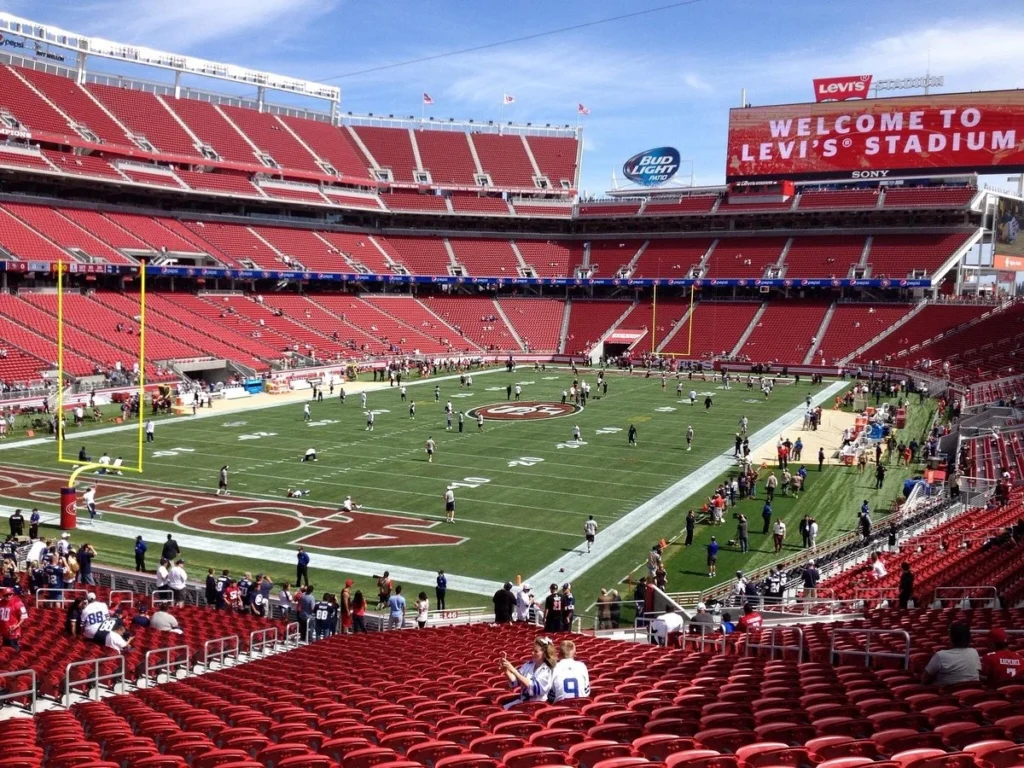

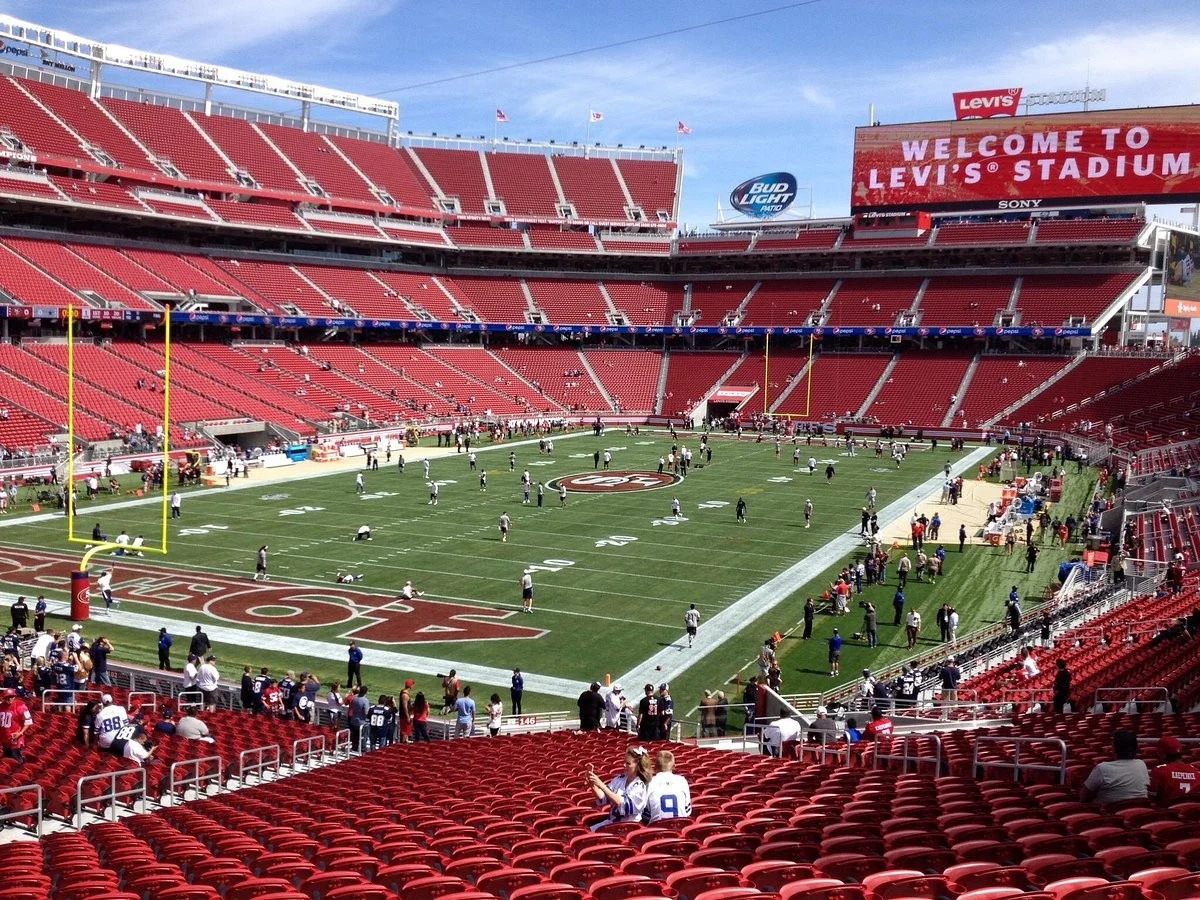

Historic Stadium Renovation – Levi’s Stadium Integration (Santa Clara, CA)

Although Levi’s is new, the complicated renovation of the surrounding Great America Theme Park infrastructure – including the integration with existing utilities – showcased Scan-to-BIM’s power for large-scale, infrastructure-heavy projects in environments that are constrained – such as urban stadium districts. The precise scanning of existing tunnels, utilities, and structures is critical for a seamless integration of the renovation – without disrupting any existing operations.

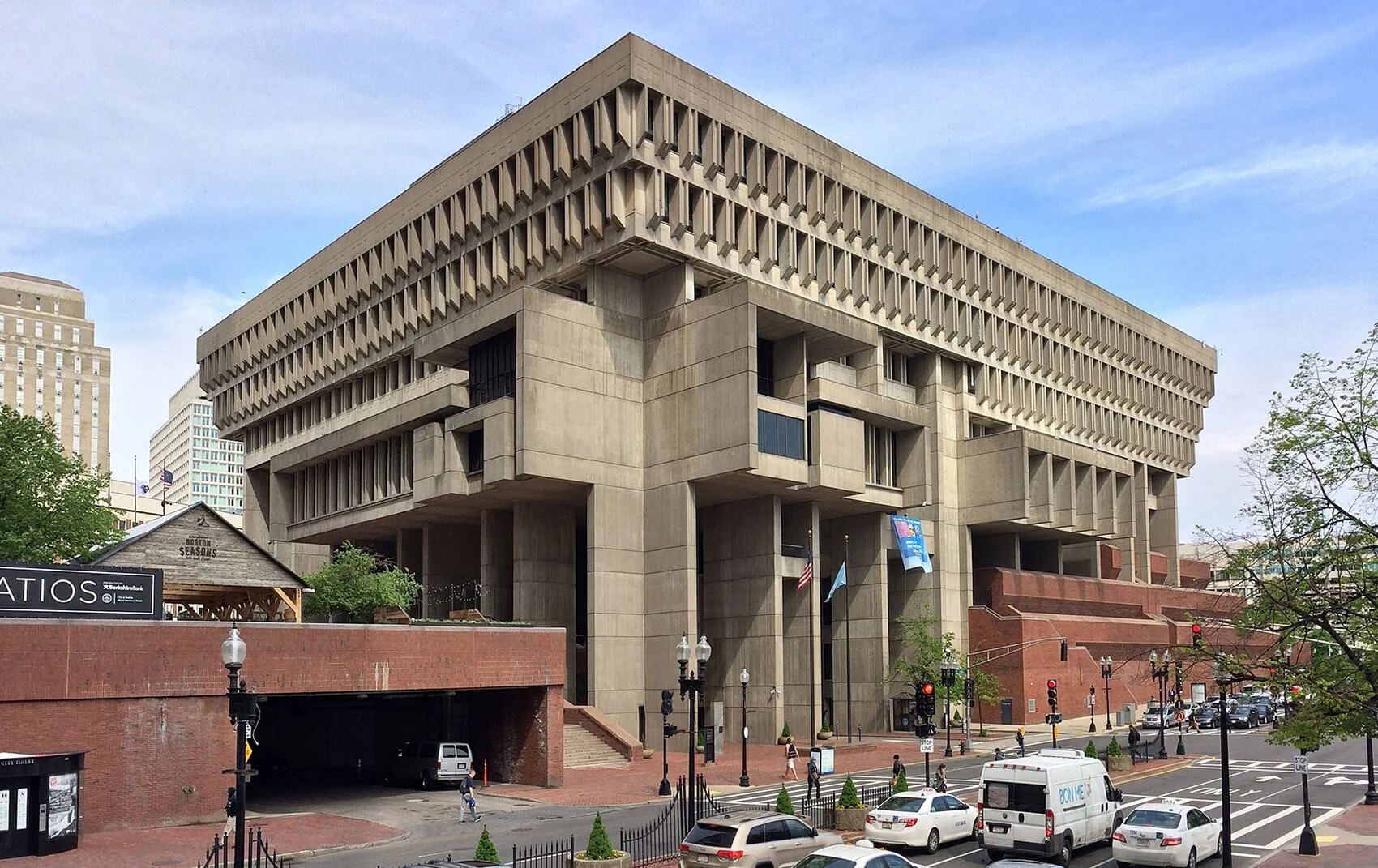

Iconic Civic Building – Boston City Hall Renovation

This brutalist landmark building was renovated with total support from Scan-to-BIM. The complex geometry of the concrete forms of the building was captured via laser scanning – along with the precast panels and the challenging interior spaces. The BIM model was required for:

• Documenting the deteriorating concrete accurately for repairs that are targeted.
• Designing mechanical systems in new forms to fit within the structural voids, typically unconventional
• Prefabrication of the replacement panels so that they match the unique originals properly.Planning construction in different phases within the actively occupied government building.
• Planning construction in different phases within the actively occupied government building.

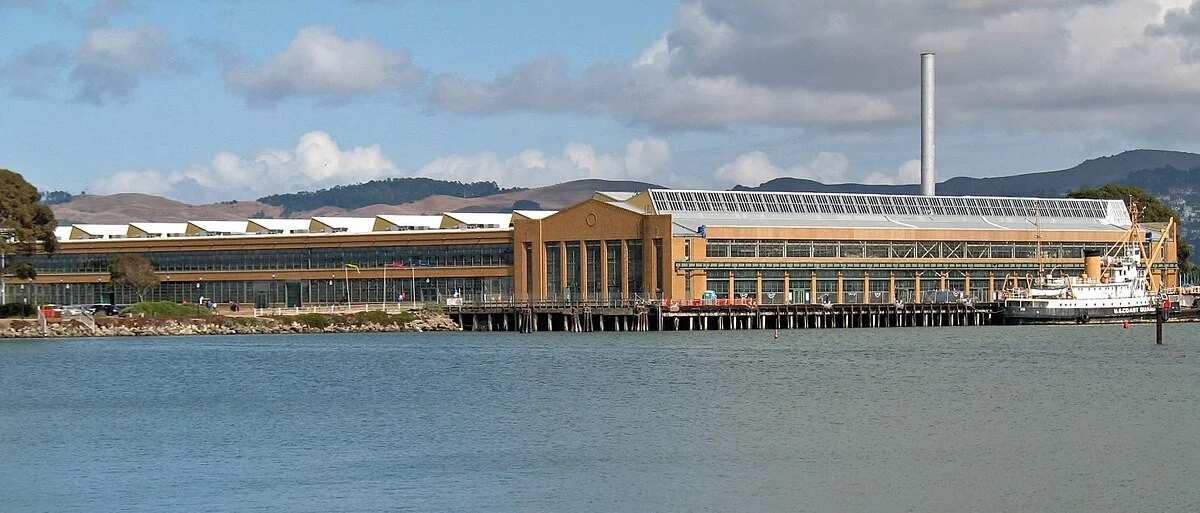

Adaptive Reuse – The Ford Plan (Richmond, CA)

Transforming the iconic 1930s assembly plant of Henry Ford into a mixed-use community hub had one vision – respecting its industrial heritage while making it suitable for modern use – living and retail. Scan-to-BIM documented the precise as-built conditions of the vast columned spaces, which allowed architects to strategically place new structural elements, design mezzanines – while integrating utilities that do not compromise the historic structure’s character-defining features. The model also ensured that the new interventions coexisted respectfully with the original fabric.

Source: https://en.wikipedia.org/wiki/Ford_Motor_Company_Assembly_Plant

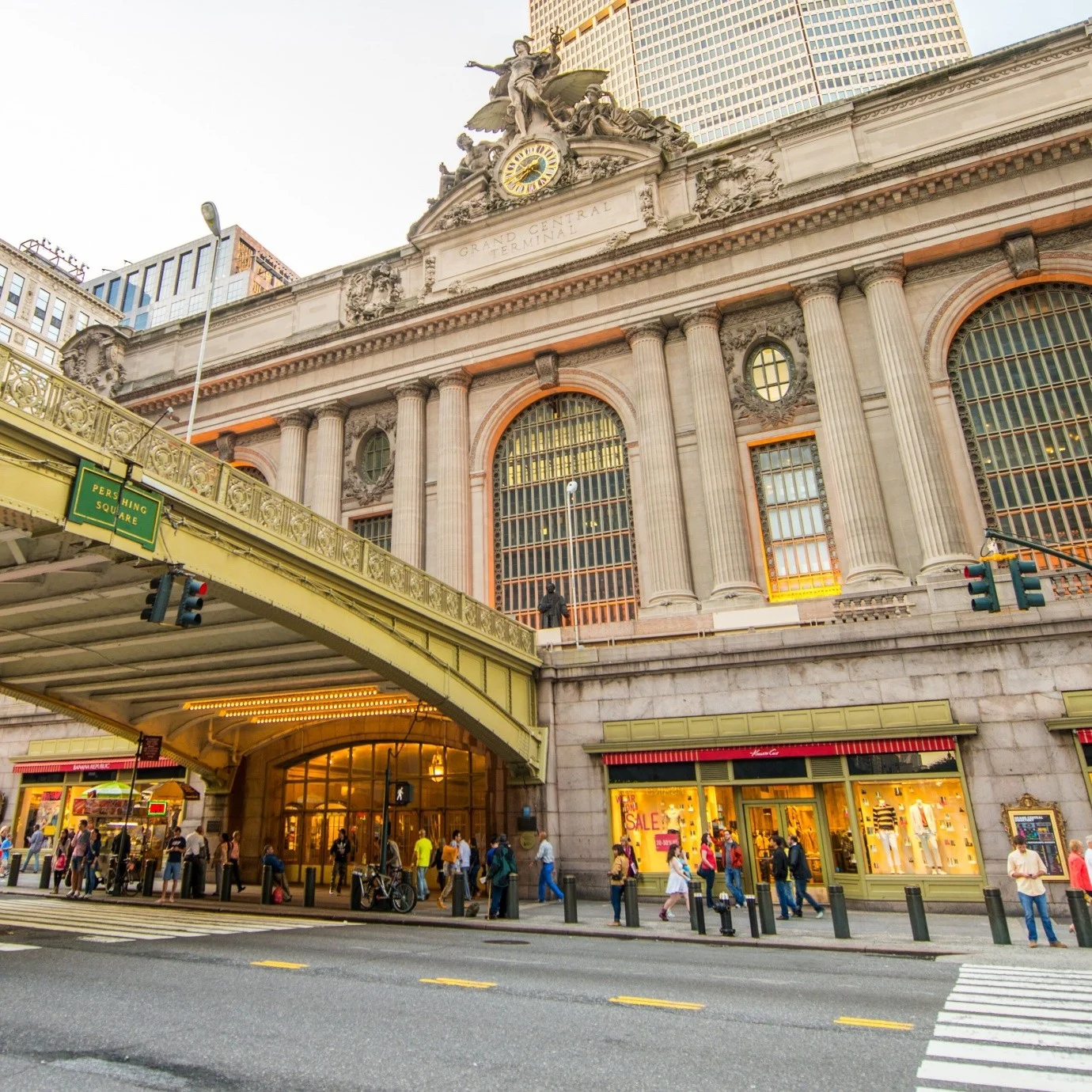

Aged Infrastructure – Grand Central Terminal (NYC)

While the major renovations have been done before the widespread use of Scan-to-BIM, today’s maintenance and smaller upgrades that happen within this Beaux-Art iconic structure do use the technology. Laser scanning helps capture the ornate details of the ceilings, cornices, and the structural elements for precise restoration work. It also ensures that any new installations – like lighting or signage – are designed to fit perfectly within the complex historic environment, without any damage.

Challenges and Considerations

In spite of all its benefits, Scan-to-BIM does not come without its challenges:

• Data overload: processing as well as managing large point-cloud files needs powerful hardware and skilled technicians at work.
• Interpretation complexity: a domain experience is needed while translating raw point-cloud data into meaningful BIM elements – particularly when the project has degraded or ornate structures.
• Historical sensitivity: there are preservation guidelines that restrict certain type of modifications – BIM teams need to work closely with historians and preservation boards to ensure complete compliance.

However, as these software and hardware tools are becoming more accessible, workflows have become more standardized – making these challenges more manageable.

The Future: Beyond the Point Cloud

Scan-to-BIM is in constant evolution. Its integration with photogrammetry creates better and richer visual context too. With AI and ML starting to assist in the automatic classification of point-cloud data – they are able to identify specific building elements within the scans as well – which speeds up the modeling process. Cloud collaboration platforms have started making access and work with these large datasets easier – especially for bigger, distributed teams. The ultimate goal of restoration, and renovation is to create a living digital twin of the historic asset, with updates throughout its life cycle – which will serve preservation, maintenance, and future adaptation needs.

To Finish Up

Scan-to-BIM is not just a technological upgrade – it represents a paradigm shift in how the US market and populace approaches its built heritage. Scan-to-BIM provides an immutable digital record of the existing conditions of historic structures – which allows intelligent, clash-free designs within the confines of these built forms. It empowers architects, engineers, and preservationists to work for such projects with unprecedented confidence and precision. The National Institute of Standards and Technology (NIST) publications on 3D imaging performance (like NISTIR 7338, ‘Performance Test Methods for Terrestrial Laser Scanners’) and technical specifications from leading manufacturers state that modern laser scanners capture the existing conditions with an accuracy of ±1-2 millimeters, far exceeding the typical ±25-50 millimeters or more achievable with traditional manual surveying methods on complex historic structures.

The results? Renovations that are more respectful of the historic structures – less destructive, more cost-effective, and ultimately, more successful in extending the life and relevance of the cherished landmarks – be it the grandeur of civic buildings or the communal spirit of historic stadiums. As laser scanning becomes faster, BIM software becomes more powerful, and workflows are more integrated, Scan-to-BIM will undoubtedly remain at the forefront of preserving the architectural legacy of America – breathing new life into historic spaces for generations to come. The revolution for historic renovation is here – built one precise laser point at a time.
