Navigating BIM Coordination & Clash Detection in US Commercial Projects

The urbanscape of the United States commercial buildings – encompassing office towers, retail complexes, healthcare facilities, and over mixed-use developments – is characterized today by its increasing complexity, tight schedules, and relentless budget pressures. In this demanding environment, the integration of all the diverse building systems – architectural, structural, MEP, fire protection, and such – poses a significant challenge. Traditional methods of coordination via 2D drawings fall short, leading to costly clashes detected later on-site – which may need rework, budget overruns, and eventually, strained stakeholder relationships.

This is where Building Information Modeling (BIM)’s powerful coordination workflow comes in, which is centered on clash detection. By strategically using industry-standard tools like Autodesk Revit (3D modeling) and Navisworks (clash detection and reports), project teams can change this challenge into a competitive advantage – for smoother execution and higher project success rates. This article looks at the role of Revit and Navisworks in navigating BIM coordination and clash detection within the United States commercial project market.

The Importance of BIM Coordination in Commercial Projects

BIM coordination is a process that makes sure all disciplines associated with a project, commercial in this case, are working in a synchronized manner, with conflict-free data. In large-scale US commercial projects, complexity as well as the scopes are high – here, poor coordination can lead to expensive rework, missed deadlines, and eventually, strained relationships between the stakeholders.

Clashes between different systems – say for example, HVAC ducts intersecting with structural beams – are the common pain points in such cases. BIM coordination uses Revit and Navisworks to identify these issues before ground is broken. This is a proactive approach that leads to fewer requests for information (RFIs), faster approvals, and a more efficient execution on field.

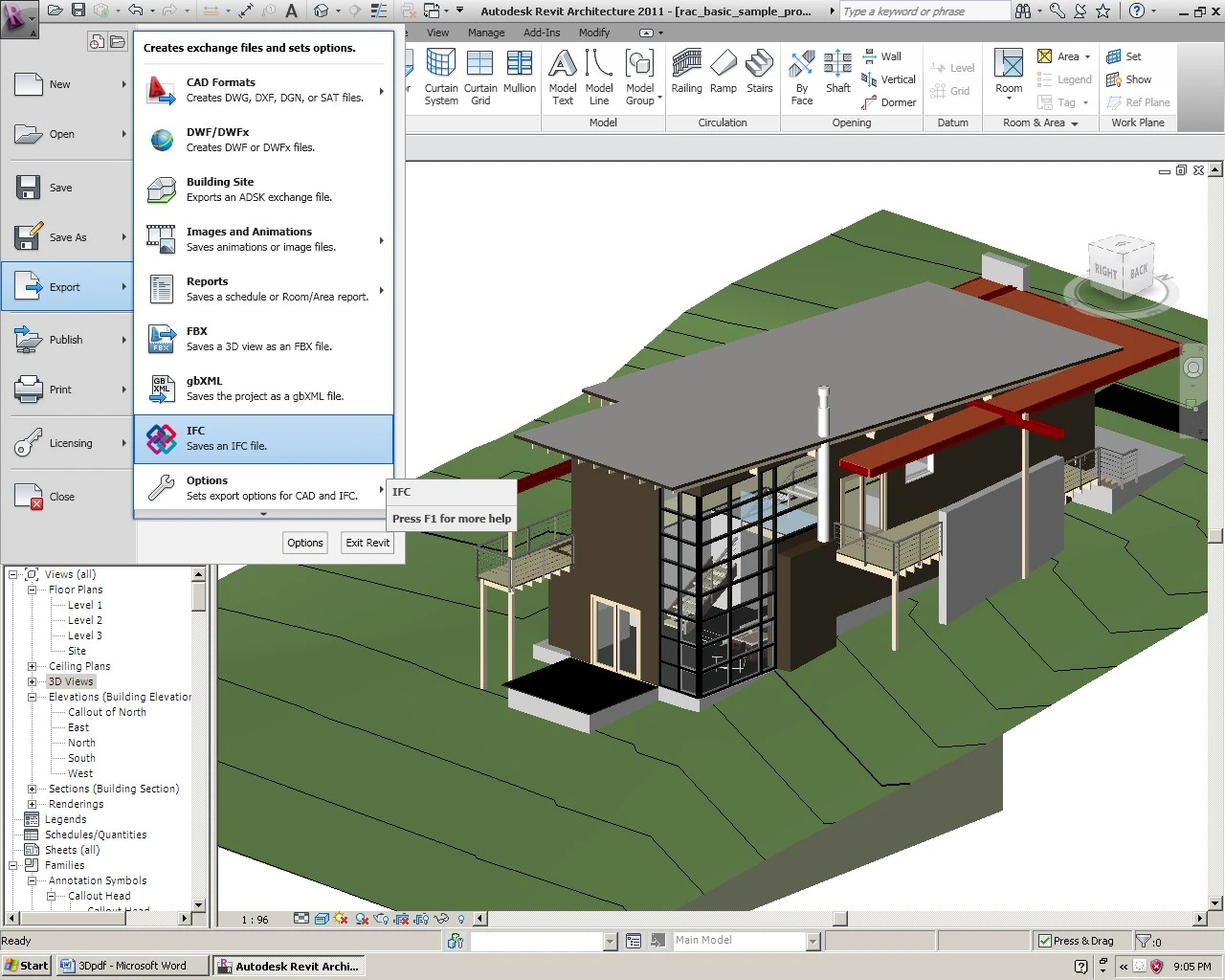

Building Intelligence in Revit

The coordination journey starts much before clash detection happens – it shall start with detailed modeling in Revit. Revit is the central repository for the project’s digital DNA – each discipline develops their intelligent 3D model which is then combined.

1. Discipline-Specific Modeling: each stakeholder builds their own model details – architects detail walls, spaces, and facades, while structural engineers model foundations, columns, beams, and slabs. MEP engineers would go ahead to design intricate ductwork, piping, conduit runs, and equipment layouts – the quality and detail of these models is paramount. US projects need specific Levels of Development (LOD) at various design stages to ensure that the models contain sufficient detail (geometric and data) for meaningful coordination.
2. Shared Coordinates and Consistency: for the different models to integrate seamlessly, a common coordinate system is needed. The non-negotiable first step while design in the US context is the establishment and maintenance of a shared coordinate system across all disciplines’ models – especially for projects with multiple sites and large sites. A consistent origin and the same orientation prevent models from misaligned, when finally combined.
3. Modeling Best Practices: effective coordination depends on disciplined modeling:

• Accuracy and completeness: models must accurately represent the intended design, including all the necessary components needed for spatial coordination.
• Clean geometry: avoid unnecessary complexity, overlapping elements, and ‘junk geometry’ – it helps reduce false positives during clash detection.
• Correct object categorization: assigning elements in the models to the appropriate Revit categories – ducts, pipes, cables, trays, structural framing, and so on – is crucial for setting up effective clash rules in Navisworks.
• Use of work sets and phasing: this is the management of visibility and the project stages effectively, within Revit streamlined models when exported for coordination.

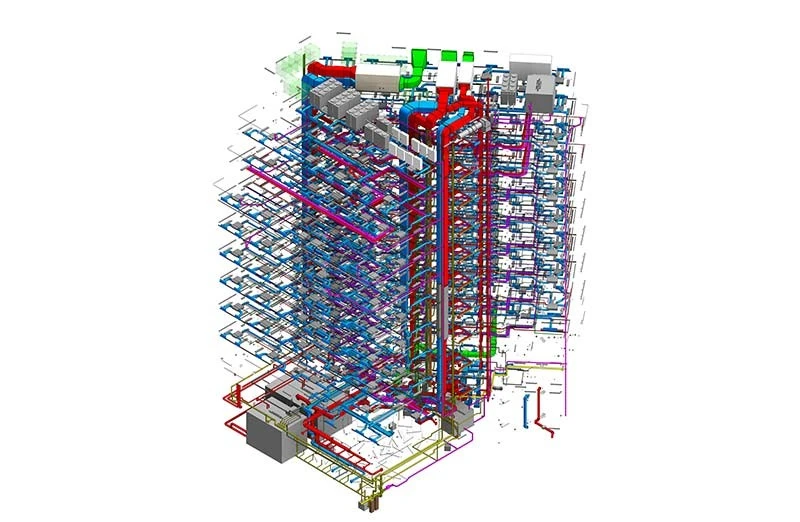

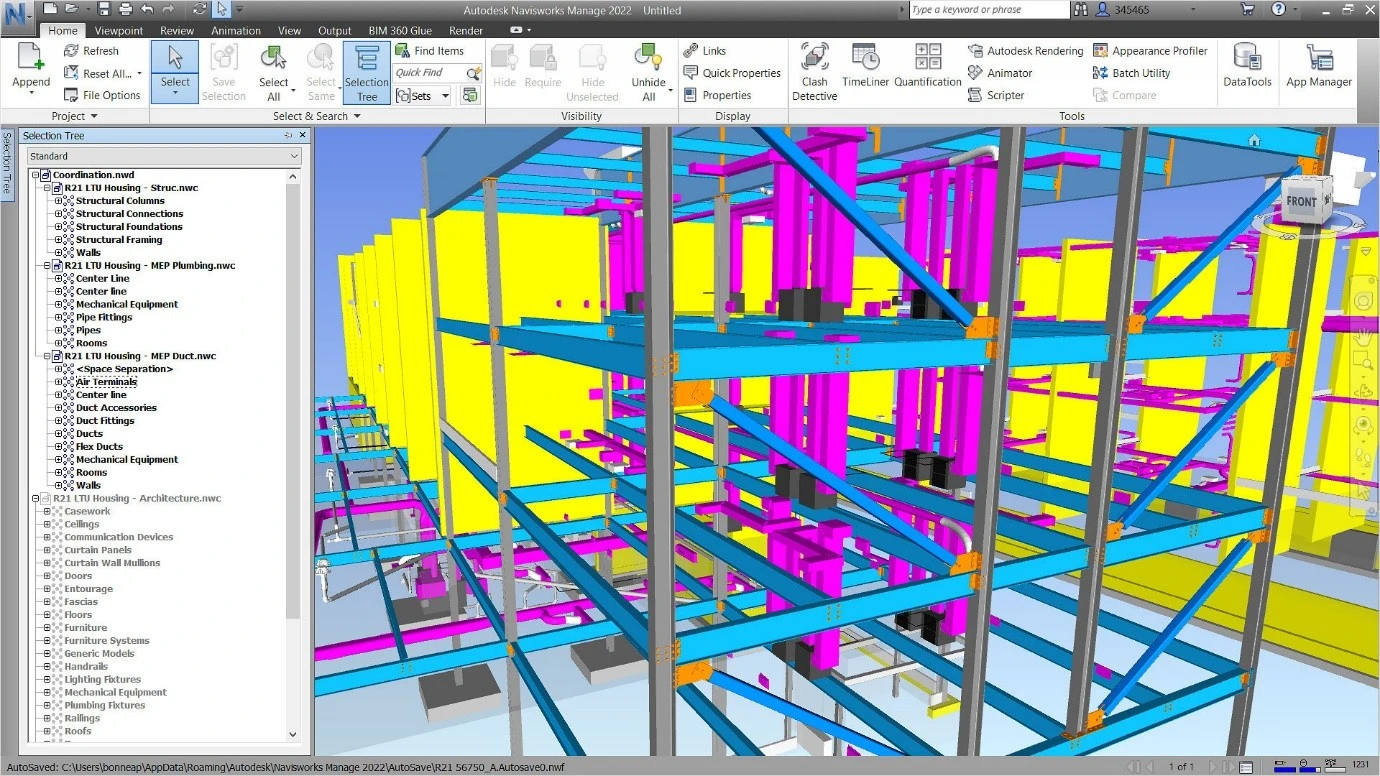

The Coordination Hub: Clash Detection in Navisworks

Revit excels in model creation, while Autodesk Navisworks Manage is the platform for federating models, visualizing the integrated design, and performing sophisticated clash detection. It helps bring the different, disparate Revit models together into a single, navigable environment. The process unfolds as such:

1.  Federation: Navisworks can seamlessly import models from Revit, as well as other CAD or BIM formats as needed. This federated model represents the entire building, allowing all teams to visualize how the systems interact spatially.
2. Clash detection methodology: Navisworks automates the process of identifying interferences (clashes) between elements from different models – or even within the same model. The key approaches include:

• Hard clashes: these are physical intersections of building elements – for example, a duct running through a structural beam.
• Soft clashes / clearance clashes: these clashes occur due to violations of required buffer zone – for example, insufficient access space around electrical equipment. Soft clashes are often more critical than hard clashes in MEP-heavy commercial projects.
• 4D clashes: these are the clashes that occur only at specific times during the construction phase – for example, temporary works interfering with permanent installations.

3. Setting up effective clash tests: the power of Navisworks lies in customization. Instead of one massive clash text, teams can create targeted, smaller tests which are more focused:

• Discipline vs. discipline: for example, structural steel vs. MEP ducts, architectural walls vs. plumbing pipes.
• System vs. system: for example, HVAC vs. Electrical.
• Specific clearance zones: for example, checking for required maintenance access around AHUs or electrical panels.
• Rule-based clashes: can ignore some known acceptable penetrations – for example, approved sleeves through walls or floors.

4. Running clash detection: Navisworks quickly scans the models based on the tests defined by the teams, and can now generate a comprehensive list of clashes.

The Best Practices for Success

To maximize the benefits of combining BIM and Navisworks in commercial project coordination, experts have suggested the following best practices:

• Start early: you must integrate the coordination workflows from the beginning of the design phase – rather than waiting for the stage where construction documents are starting to be made.
• Define clear protocols: before beginning the modeling, establish one or more BIM Execution Plans (BEPs) which outline the modeling standards, LOD requirements, coordinate systems, file naming, clash tolerance rules, and other resolution workflows.
• Invest in skilled personnel: ensure that your BIM managers and VDC coordinators are proficient in both Revit and Navisworks software – along with understanding construction sequencing and being good communicators.
• Leverage cloud collaboration: utilize platforms like Autodesk Construction Cloud to create centralized model management, complete real-time clash status tracking, and also access coordination meetings.
• Regularize coordination cycles: schedule frequent coordination meetings from the beginning – weekly or even bi-weekly – to update the models and run more tests, especially during peak design and preconstruction phases.
• Focus on clearances: prioritize soft clash detection over hard clashes. Soft clashes define the maintenance access and constructability of a project, cause much more issues than any hard clashes.

Tangible Benefits for US Commercial Projects

The proper, strategic use of Revit in combination with Navisworks for BIM coordination delivers significant, quantifiable advantages for commercial projects:

1. Dramatically reduced rework and change orders: identifying and resolving clashes before construction begins almost completely eliminates the costs of fixing issues on the field. This directly reduces project budgets, which is a paramount concern for developers and owners.
2. Minimized project delays: when conflicts are identified while reading drawings and construction, the critical path remains intact. This avoids delays, keeping the project on schedule, and meeting crucial deadlines.
3. Enhanced collaboration and communication: the federated model in Navisworks – combination of models of all disciplines – is the single source of truth. From this central source, architects, engineers, and contractors can easily communicate and understand the model. Clear clash reports and visualizations eliminate ambiguity.
4. Improved cost estimation and planning: accurate clash-free models can provide reliable quantities as well as spatial data for a precise cost estimation of the project alongside construction planning – along with prefabrication opportunities, which are common in US MEP work.

Common Coordination Challenges and How BIM Tools overcome them

In spite of the capabilities of Revit as well as Navisworks, the United States commercial projects often face coordination hurdles. Some of them may be:

1. Inconsistent modeling standards: when modeling practices are different across different disciplines, problems are bound to arise.
2. Solution: implement a project-wide BIM standard and templates in Revit – ensuring consistency in Revit families, naming conventions, and the level of required detail.
3. Model version conflicts: different file versions can lead to outdated clash checks or even misplaced components.
4. Solution: use a shared cloud environment like Autodesk Construction Cloud or Revit Cloud Worksharing to ensure that all models that are used are up-to-date.
5. Overlooking soft clashes: hard clashes are physical overlaps, but soft clashes are operational – for example, adequate clearance zones. These may cause more issues in the future.
6. Solution: within the clash detection settings in Navisworks, include soft clash checks using defined clearances and buffer zones.
7. Delayed clash resolution: identified clashes remain unresolved if they are not properly tracked.
8. Solution: use Navisworks’ clash status and comments, along with issue management tools like BIM Track or Revizto, to ensure that clashes are resolved promptly and transparently for everyone.

Future of BIM Coordination: AI and Automation

Upcoming technologies are enhancing the traditional coordination workflows. AI has already begun to assist in clash prediction and for giving recommendations for automated issue resolution. Tools like Autodesk Construction Cloud, Revizto, and OpenSpace are integrating with Revit and Navisworks to provide a more dynamic and connected coordination experience. As these technologies eventually mature, clash detection will become more proactive and less reactive – shifting the role of the BIM coordinator from detection to strategic oversight.

Summing Up!

In the arena of United States commercial construction which is complex yet competitive, BIM coordination done effectively, along with clash detection, are no longer optional – they are required on a fundamental level for the success of the project. Autodesk Revit provides the platform for intelligent, disciplined modeling, while Autodesk Navisworks holds the capabilities of powerful federation, visualization, and automated clash detection – needed to identify conflicts before they reach on-site.

Project teams can master the integrated workflow between these two tools to transform coordination into a strategic advantage – establishing clear protocols, fostering collaboration, and focusing on resolution of issues. The result of this is overall advantageous to AEC firms – minimized delays, controlled costs, reduced risks, and enhanced quality – culminating into sophisticated commercial projects that meet the high expectations of the United States market. Embracing this workflow goes beyond adopting just the technology – it is about adopting a smarter, more efficient, and a more collaborative way to build.
